Nitrous oxide
-
Physical and chemical properties:
Physical state : Gas
Appearance : Colorless, nonflammable gas.
Molecular mass : 44 g/mol
Color : Colorless.
Odor : Sweetish
Odor Threshold : Odor threshold is subjective and inadequate to warn for overexposure.
Ph : Not applicable
Relative evaporation rate(butyl acetate = 1) : No data available
Relative evaporation rate(ether=1) : Not applicable
Melting point : -90.81 °C
Freezing point : No data available
Boiling point(184.67 K) : -88.48 °C
Flash point : Not applicable
Critical temperature : 36.4 °C
Auto-ignition temperature : Not applicable.
Decomposition temperature : 650 °C
Flammability (solid, gas) : No data available
Vapor pressure : 5080 kPa
Critical pressure : 7255 kPa
Relative vapor density at 20°C : No data available
Relative density : No data available
Specific gravity/ Density : 0.785 g/cm3 (at 200 °C)
Relative gas density : 1.5
Solubility : Water: 20 mg/l
Log Pow : Not applicable
Log Kow : Not applicable
Viscosity, Kinematic : Not applicable
Viscosity, dynamic : Not applicable
Explosive properties : Not applicable
Oxidizing properties : Oxidizer
Explosive Limits : Non flammable
Gas group : Liquified gas
Additional information : Gas/ vapour heavier than air. May accumulate in confined spaces, particularly at or below ground level
Certification:
Industrial grade
Purity
≧99.9%
CO
≦20PPMV
O2+AR
≦200PPMV
CO2
≦50PPMV
N2
≦600PPMV
H2O
≦30PPMV
Smell
NO
Food grade
Purity
>99.5%
CO
<5 vol.ppm
CO2 <10 vol.ppm NO
<1 vol.ppm NO2
<1 vol.ppm HH3
<1 vol.ppm Halogens
<1 vol.ppm

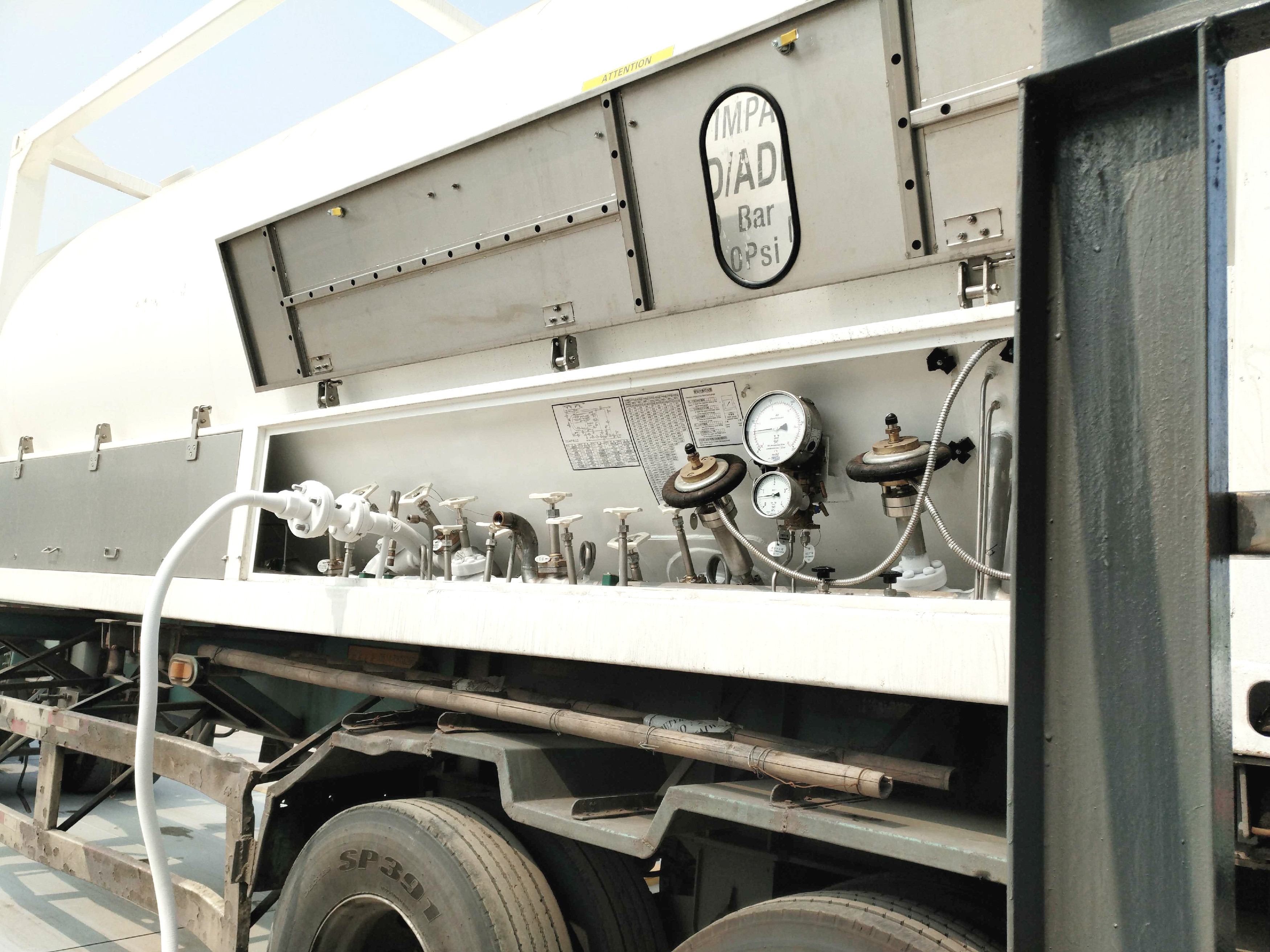

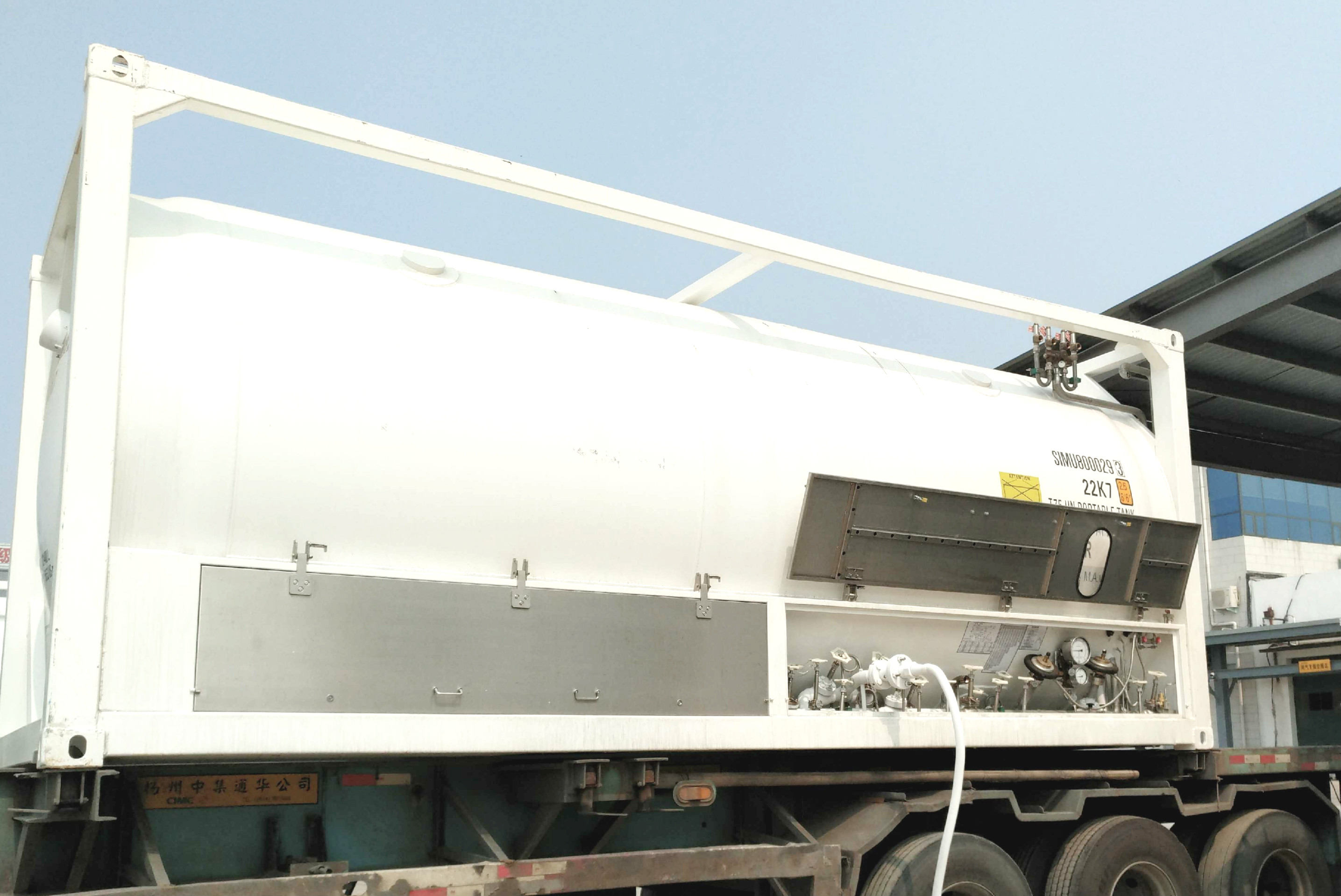

O2+N2+Ar <0.5 % H2O <20 vol.ppm Transportation reference :T75 16~24BAR ISO tank
ISO TYPE
T75
WORKING PRESSURE
16-24BAR
TARE WEIGHT
7750-12000KG
WATER CAPACIT
20100-21700L
LOADING WEIGHT
18000-21500KG
TOTAL WEIGHT
28000-33000KG
