Cryogenic ball valve DN 08 - DN 100 Size 1/4" to 4"

Cryogenic ball valve,3 ways valve,Actuated valve,Bronze valve
Size 1/4" to 4"
PN 100 / PN 25
Full l bore or reduced bore
Rotating ends system
ISO top flange
Fire safe (option)
Price:
$ 0.00
0

Service

Quantity:
  • Including emergency cut off valve, globe valve and other sizesExecution methods are pneumatic, manual and so on

    Technical data
    PY4 CY and PY4 CY fire safe: TF 3215 seats
    (PTFE + Carbon). Temperature range: -200°C / +200°C
    Version with extension for applications with icing risk.
    316L, 904L, 304L, Alloy 22 version.
    Standard version:
    Ball drilling in the stem mark for cavity relief in the open
    position.

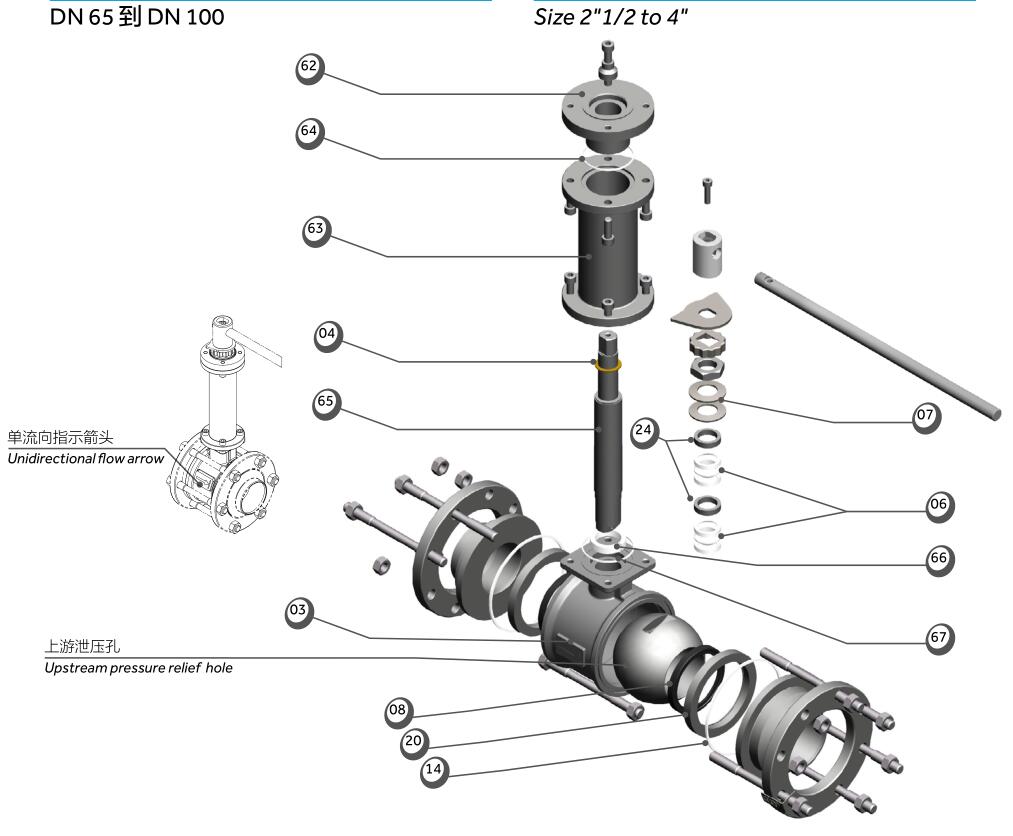

    Upstream vent hole for cavity relief in the closed position.
    PY4 CY: Stem extension avoids any stem freezing and allows
    easy valve operation.
    Approvals:
    Functionnal EN1626/-196°C
    PY4 CY Fire Safe design: EN12567, ISO10497, API607 and
    API6FA
    PED 97/23/CE
    TA-Luft (fugitive emissions)
    AD2000 Merkblatt
    Options:
    ATEX 94/9/CE
    p marking according to 2010/35/UE TPED:
    certification ADR §1.8.7.6
