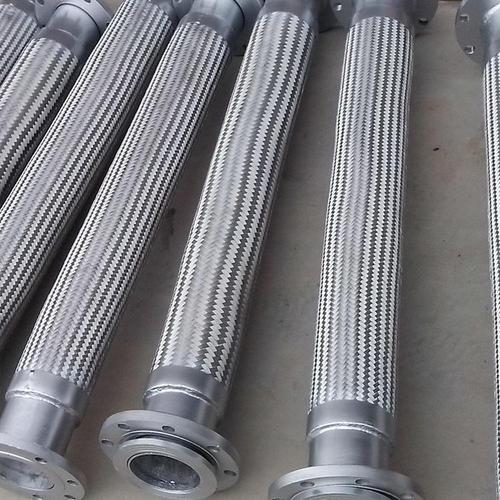

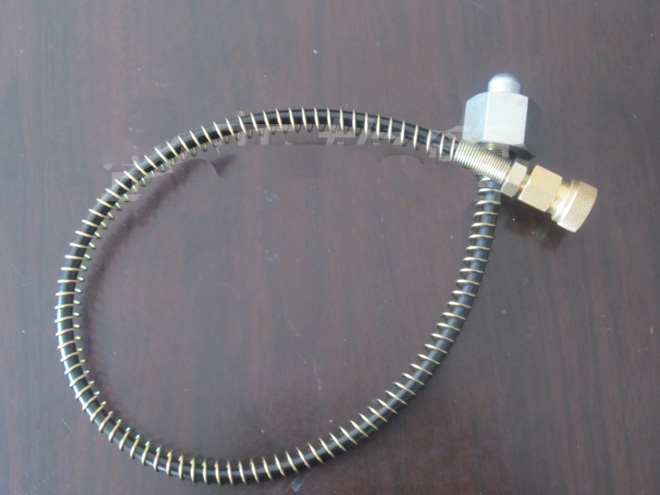

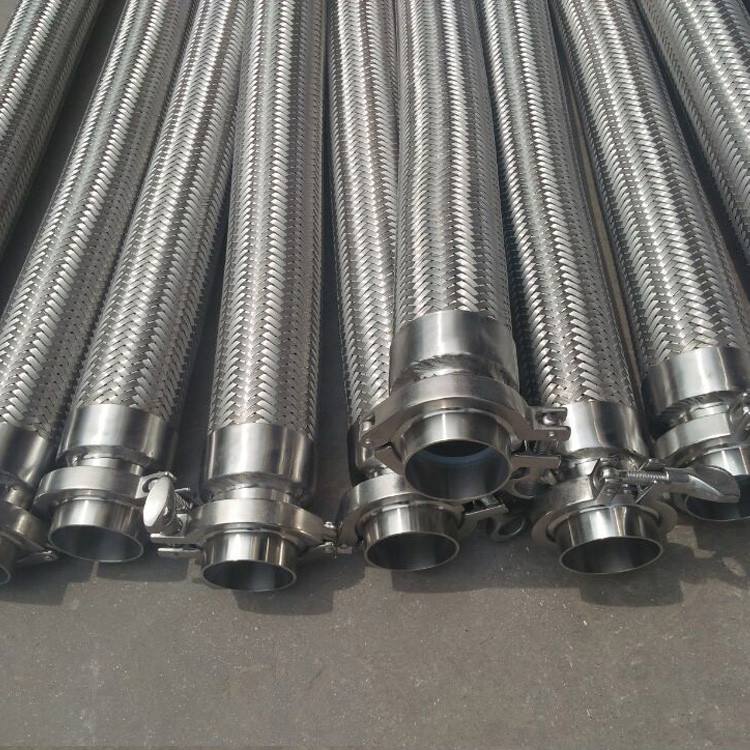

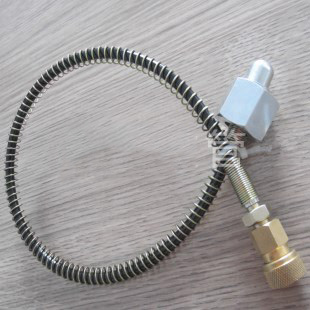

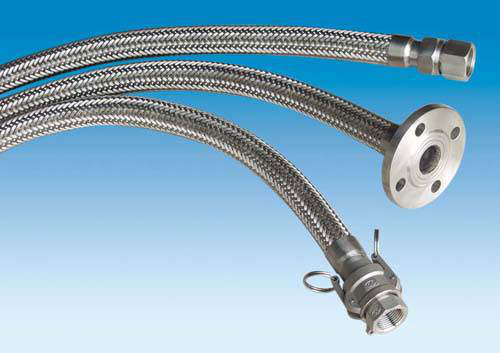

Hose，cryogenic hose

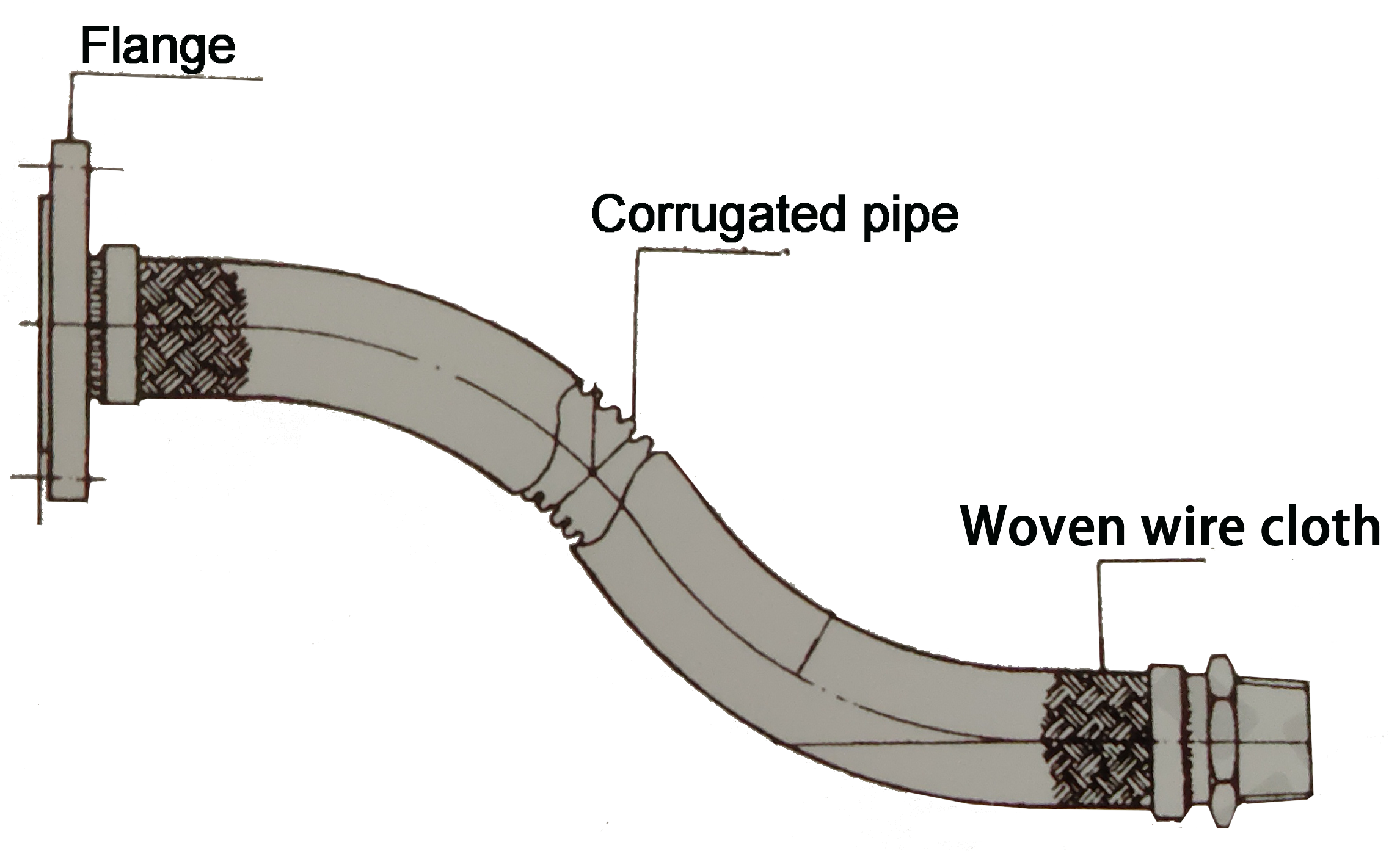

L - shaped corrugated flexible body with continuous spiral waveform, no butt welding.It is suitable for static use and small amount of exercise.
Material: 1Cr18Ni9Ti,304☆,316,316L
-
Certification for high pressure hose
Nominal size: DN10,15,20,25,32,40,50
Product length: 1 M, 1.5 M, 2 M, 3 M (can be customized according to customer requirements)
Connection: CGA295,CGA440,CG540 (can be customized according to customer requirements)
Design temperature: -196~400℃
Design pressure: 1.6 MPA, 2.5 MPA, 4.0 MPA, 6.4 MPA, 10 MPA，10~32MPA
Certification for metal hose
NO.
Code
DN
Pressure
（MPa）
L
（mm）
Connection type
Thread
Flange
1
XGMZTB20-L
DN20
0.6~2.5
300~500
R3/4
HG/T20592 PL20RF
2
XGMZTB25-L
DN25
0.6~2.5
300~500
R1
HG/T20592 PL20RF
3
XGMZTB32-L
DN32
0.6~2.5
300~500
R1 1/4
HG/T20592 PL20RF
4
XGMZTB40-L
DN40
0.6~2.5
300~500
R1 1/2
HG/T20592 PL20RF
5
XGMZTB50-L
DN50
0.6~2.5
300~500
R2
HG/T20592 PL20RF
6
XGMZTB65-L
DN65
0.6~2.5
300~500
R2 1/2
HG/T20592 PL20RF
7
XGMZTB80-L
DN80
0.6~2.5
300~500
R3
HG/T20592 PL20RF
8
XGMZTB100-L
DN100
0.6~2.5
300~500
/
HG/T20592 PL20RF
9
XGMZTB150-L
DN150
0.6~2.5
300~500
/
HG/T20592 PL20RF
10
XGMZTB200-L
DN200
0.6~2.5
300~500
/
HG/T20592 PL20RF
11
XGMZTB300-L
DN300
0.6~2.5
300~500
/
HG/T20592 PL20RF
Joint reference
DN
Parameters
L1
mm
R
S
NPT
S
mm
6
R1/8
17
1/8-27NPT
12
52
8
R1/4
19
1/4-18NPT
14
52
10
R3/8
22
3/8-18NPT
19
52
12
/
/
3/8-18NPT
19
57
15
R1/2
27
1/2-14NPT
24
57
20
R3/4
36
3/4-14NPT
27
60
25
R1
41
1--11-1/2NPT
36
62
32
R1-3/8
46
1-1/4--11-1/2NPT
46
70
40
R1-1/2
52
1-1/2--11-1/2NPT
50
75
50
R2
62
2--11-1/2NPT
65
114
65
R2-1/2
79
2-1/2--8NPT
75
127
80
R3
90
3--8NPT
90
135
20K(2.0MPA) FLANGE
DN(mm)
D
D1
n-ØL
d
f
c
10
90
65
4-Ø15
46
1
14
15
95
70
4-Ø15
51
1
14
20
100
75
4-Ø15
56
1
16
25
125
90
4-Ø19
67
1
16
32
135
100
4-Ø19
76
2
18
40
140
105
4-Ø19
81
2
18
50
155
120
8-Ø19
96
2
18
65
175
140
8-Ø19
116
2
20
80
200
160
8-Ø23
122
2
22
100
225
185
8-Ø23
160
2
24
