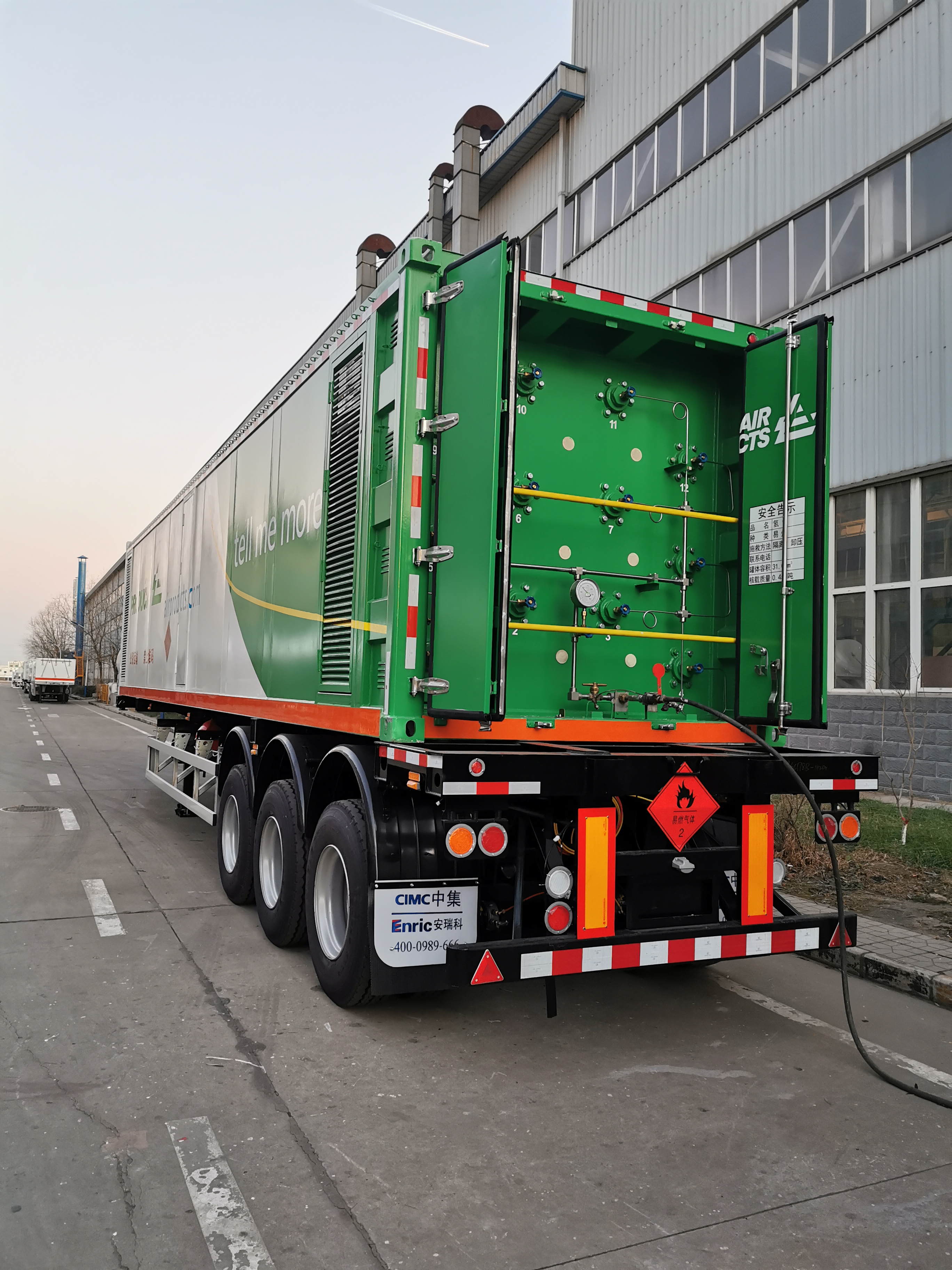

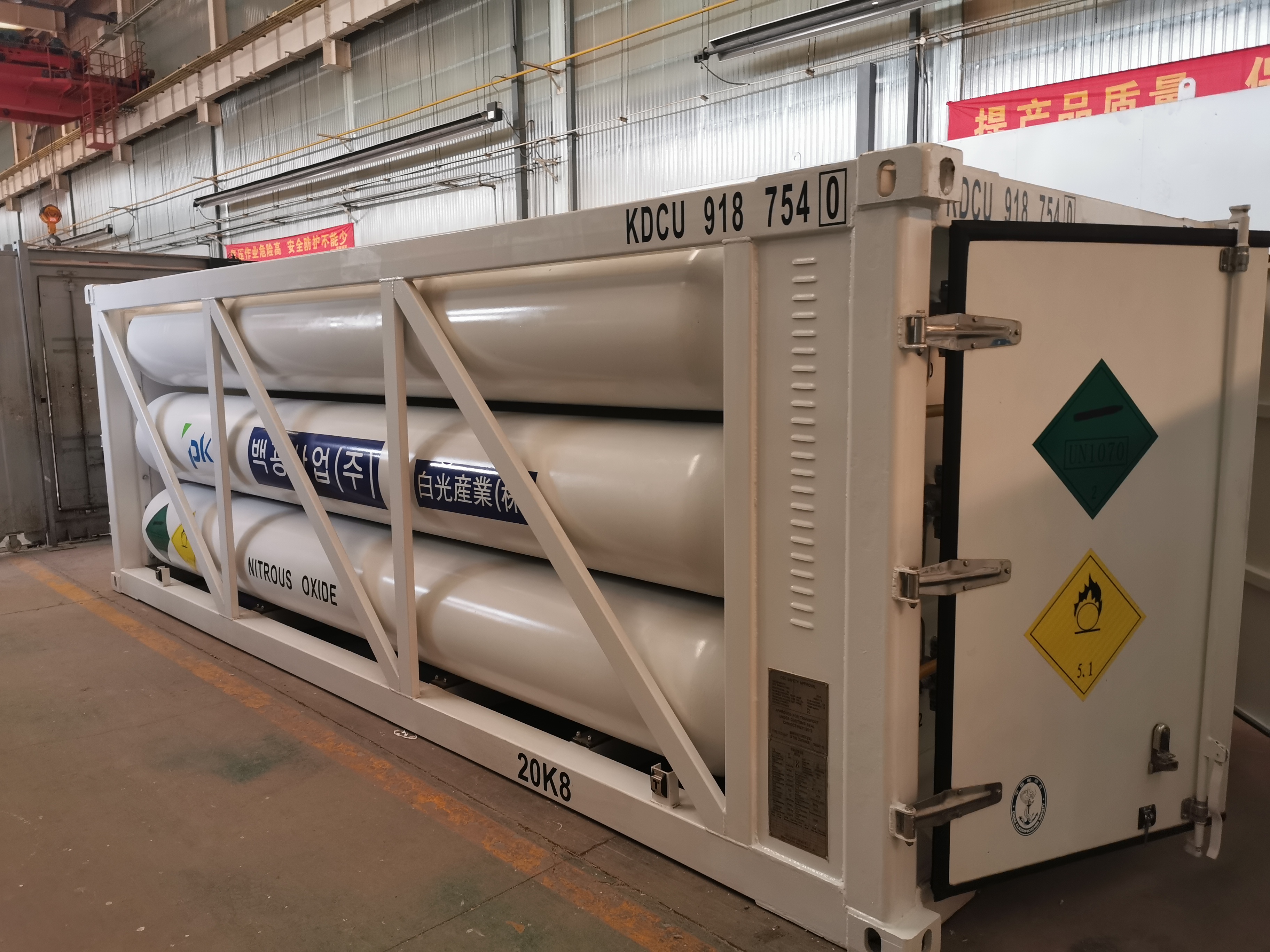

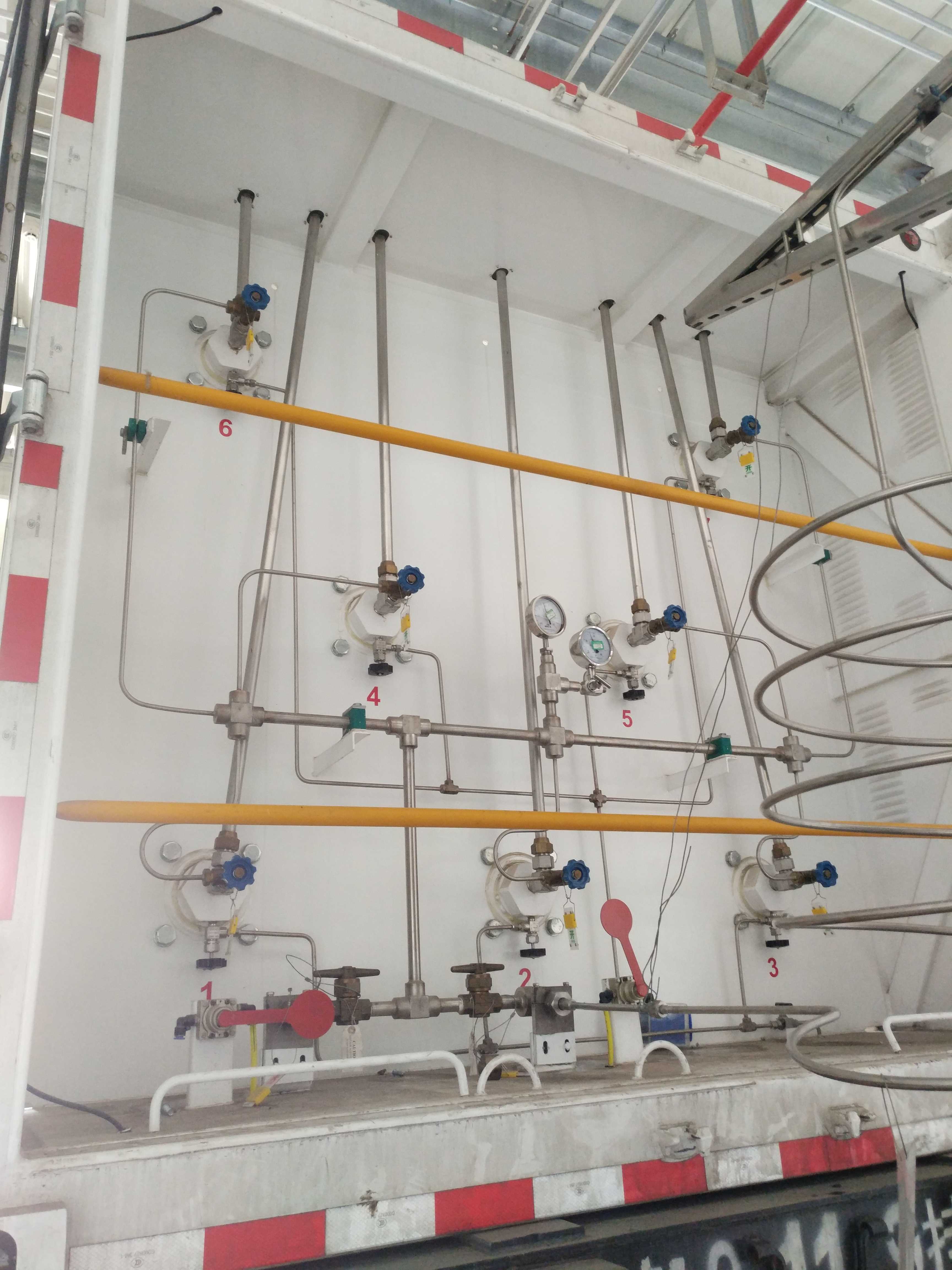

High Pressure Tube Trailer
-
1. Tube Trailer(Type I cylinders):
TT size: 20ft/32ft/40ft
Type I cylinder designed under SELO, ISO11120, DOT 3AA, 3AAX, 3T, DOT-UN; TC-3AAXM & 3TM.
Working pressure : 16.6/20/25MPa
Woring medium：Industrial Gas (H2/He/CNG/Ne/Air/CO, etc)
Standard Type I TT technical data(H2/HE/NE, etc) @ 20MPa
TT model
Tube material
Tube specs
(mm)Tube qty
Total water volume （m³）
20feet-12
4130X/4142
559*5400
12
13
20fee-16 4130X/4142 559*5400 16 16.96 32feet-11
4130X/4142
559*8235
11
18.5
40feet-10 4142 599*11580 10 24.66 40feet-11
4130X/4142
559*10975
11
25
40feet-12
4142
559*10975
12
28
40feet-7
4130X
715*10975
7
26
2. Storage Vessels:
Each Tube volume： 10.6 ft3 ～106 ft3
Tube skid type ：3×1, 4×1, 2×2, 3×2, 4×2, etc.
Design code: SELO, ASME U & U2
Working pressure : 2,400psi, 2,900psi, 5,500psi, 6,500 psi, 8,000psi & higher
3. Hoop wrapped cylinder(Type II) Tube trailer
Large volume seamless cylinder hoop wrapped with high-strength carbon fiber or glass fiber;
Designed under SELO , ISO11515
Unit water volume： 400～4200L for SELO;
450~3000L for ISO11515
Working pressure : 20~35MPa
