CALIBRATION GASES

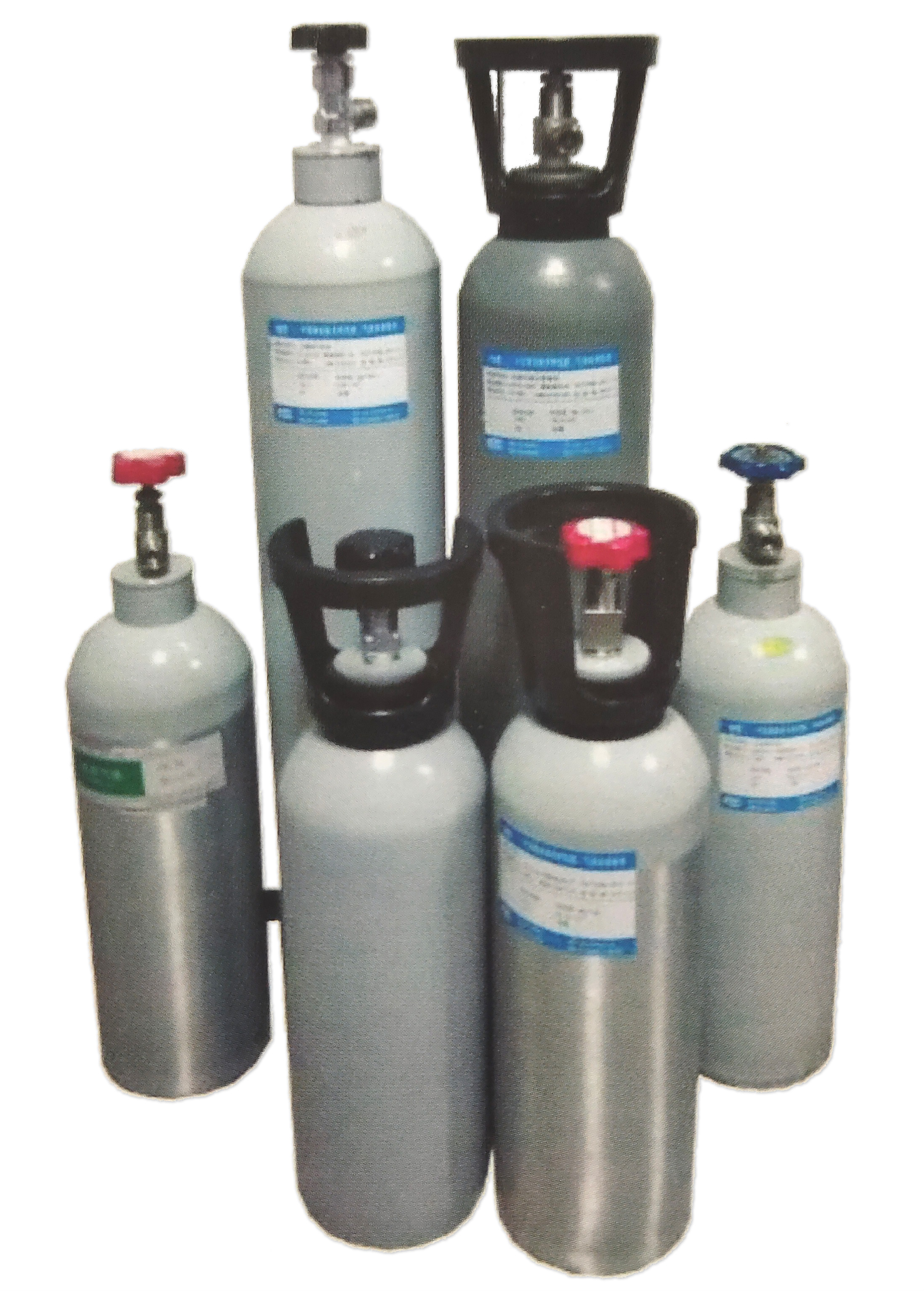

Calibration Gases, also called reference gases and standard gases, belong to gaseous standard material. It is widely used in fields of chemistry, physics, biology and petrochemical engineering. Calibration gases consist of minimum two, and can be as high as 31 components which are based on customers requirements. The method of preparation of calibration gases is gravimetric method in an ISO1/ICE: 17025 certified laboratory.

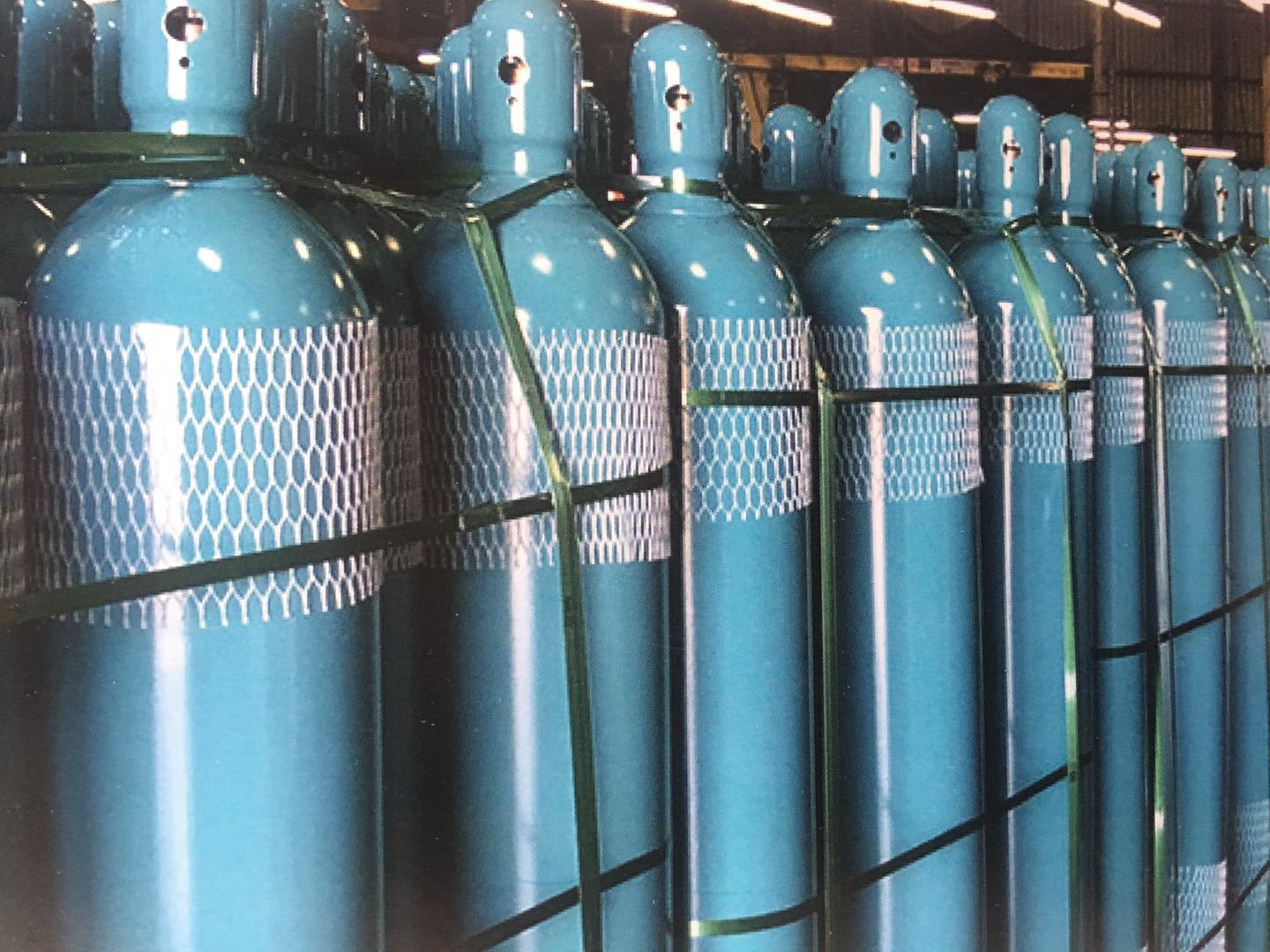

In order to ensure the stability of calibration gases, we need to
consider the effect of the cylinder material on the gases. Normally,
for most of constant calibration gases, they can be stored in
normal steel gas cylinders. But the calibration gases with trace
components like CO, CO2, NO, SO2, they must be stored in
aluminum alloy cylinders For calibration gases with corrosive
components like SO2, H2S, NO, NO2, CL2, NH3, PH3, etc,
with a concentration of under 10ppm, aluminum alloy cylinders
with internal coating must be used. Most calibration gases require
use of stainless steel gas valves such as CGA 660, CGA 890, CGA350, etc.
Petrochemical Standard Gas
Name
Typical Components
Standard gas for determination of hydrocarbon impurities in Ethylene
CH4 10~100pm
C2H6 50~5000m
C3H8 10~100ppm
Propylene 10~100ppm
Isobutane 10~100ppm
C2H2 5~50ppm
Butane 10~100ppm
Allene 10~100ppm
(E)-2-Butene 10~100ppm
1-Butylene 10~100ppm
Isobutylene 10~100ppm
Cis-2-Butene 10-100ppm
1, 3-Butadiene 10~100ppm
Methyl Acetylene 10~100ppm
Can compound above two components or more as one kind of standard gas. The concentration is based on the requirement.
Standard material for determination of hydrocarbon impurities in Propylene
CH4 10~1000p0m
C2H6 10~1000m
C2H4 10~10000m
C3H8 50~50000m
Cyclopropane 10~1000ppm
Isobutane 10~1000ppm
Butane 10~1000ppm
Allene 10~1000ppm
C2H2 10~500ppm
(E)-2-Butene 10~1000ppm
1-Butylene
10~1000ppm
Isobutylene 10~1000ppm
Cis-2-Butene 10~1000ppm
1, 3-Butadiene 10~1000ppm
Propyne 10~1000ppm
Can compound above two components or more as one kind of standard gas. The concentration is based on the requirement
Standard gas for determination of Carbon Monoxide and Carbon Dioxide in Ethylene/Propylene
CO, CO2 each 2~100ppm
The concentration can be prepared from ppm to percentage in other uses
Standard gas for determination of trace Oxygen in Ethylene/ Propylene
2~100ppm
The concentration can be prepared from ppm to percentage in other uses
Standard gas for determination of trace Hydrogen in Ethylene/Propylene
2~100pm
The concentration can be prepared from ppm to percentage in other uses
Standard gas for determination of trace Methanol in Ethylene/ Propylene
CH4O 10~2000ppm
Standard material for determination of liquefied Petroleum gas
CH4, C2H6, C2H4, C3H8, Cyclopropane, Propylene, Isobutane, N-Butane, Allene, C2H2, Trans-Butene, 1-Butene, Isobutylene Cis-Butene, Isopentane, N-Pentane, 1, 3-Butadiene Propyne N-Hexane
Typical Concentration:0.2%~30%(mol/mol)
Can compound above two components or more as one kind of standard gas. The concentration is based on the requirement
Standard gas for determination of natural gas
H2, 02, N2, CO2, C2H6, C3H8, Isobutane , N-Butane
Neopentane, Isopentane, N-Pentane, N-Hexane, N-Heptane and 1-Octane, etc
Typical concentration: 0.01%~100%(mol/mol)
Can compound above two components or more as one kind of standard gas. The concentration is based on the requirement
Standard material of Sulfide
H2S, SO2, COS, Methyl Mercaptan, Ethyl Mercaptan, Dimethyl Sulfide, Methyl Disulfide, Thiophene, etc. The concentration is from 1 ppm~percentage
Standard material for determination of hydrocarbon impurities in Isobutane
C3H8, Propylene, Allene, Propyne, Isobutane, N-Butane, 1-Butene, Cis-Butene. 1.3-Butadiene, Trans-Butene
Typical concentration: 10-5000mg/Kg
The concentration can be prepared according to specific requirements
Standard material for determination of hydrocarbon impurities in 1-Butene
C3H8, Propylene, Allene, Propyne, Isobutane, N-Butane, sobutylene, Cis-Butene, 1,3-Butadiene. Trans-Butene
Typical concentration: 10~5000mg/Kg
The concentration can be prepared according to specific requirements
Standard material for determination of hydrocarbon impurities in Butadiene
C3H8, Propylene, Isobutane, N-Butane, Allene, C2H2, Trans-Butene, Isobutylene, 1-Butene, Cis-2-Butene, Isopentane,
Isopentane, 1,3-Butadiene, Propyne, 1-Butyne, Vinyl Acetylene
Typical concentration: 10~5000mg/Kg
The concentration can be prepared according to specific requirements
Standard material for determination of purity of MTBE
CH40. C2H60, N-Butane, N-Pentane, 1, 3-Butadiene, Tert-Butanol, Dimer, etc
Typical concentration: 0.02%~1%wt
The concentration can be prepared according to specific requirements.
Standard material of hydrocarbon
Can compound below two components or more as one kind of standard gas. The concentration can be prepared from ppm to
percentage.
CH4, C2H6, C3H8, N-Butane, Isobutane, N-Pentane, Isopentane, Cyclohexane, Cyclopropane, Epoxyethane, C2H4, Propylene, 1-Butene, 1,3-Butadiene, Isobutylene, 1,2-Butadiene, Cis-2-Butene, Trans-Butene, Allene, Isoamylene, 1-Pentene, Cis-2-Pentene. Trans-2-Pentene, 1-Hexene, C8H16, C2H2, Methyl Acetylene, 1-Butyne, Vinyl Acetylene, 4-Ethyl Cyclohexene, etc
Standard material of benzene series
Nonbenzenoid Aromatic Hydrocarbon, Benzene, Toluene, Ethylbenzene, Paraxylene, Meta-Xylene, Cumene, Ortho-Xylene N-Propylbenzene, 3-Ethyltoluene, 2-Ethyltoluene, 4-Ethyltoluene, Alpha-Methylstyrene, Phenylacetylene, 1,3-Diethylbenzene P-Diethyl Benzene, O-Diethylbenzene, N-Butylbenzene,
1, 2, 4-Triethylbenzene, 1, 3, 5-Triethylbenzene, Styrene, etc
Can compound above two components or more as one kind of standard gas. The concentration is based on the requirement
Standard gas for analysis of common components in gas
H2, 02, N2, CO, CO2, CH4, C2H6, C2H4, C3H8, Propylene, etc
Standard Aas for Pure Gas Analysis
Name
Typical Components
Standard gas for Nitrogen analysis
Typical concentration: 2~100ppm
The concentration can be prepared from ppm to percentage in other uses
Standard gas for Oxygen analysis
H2, Ar, N2, N20, CO, CO2, CH4, etc
Typical concentration: 2-100ppm
The concentration can be prepared from ppm to percentage in other uses
Standard gas for Helium analysis
H2, N2, 02, CO, CO2, CH4, etc
Typical concentration: 2-100ppm
The concentration can be prepared from ppm to percentage in other uses
Standard gas for Hydrogen analysis
N2, 02. CO, CO2, CH4
Typical concentration: 2~100ppm
The concentration can be prepared from ppm to percentage in other uses
Standard gas for Argon analysis
H2, N2, 02, CO, CO2, CH4
Typical concentration: 2~100ppm
The concentration can be prepared from ppm to percentage in other uses
Standard Gas for Environmental Monitoring
Name
Typical Components
Carbon Monoxide standard gas
2-30ppm,31~500pm,501ppm-10%,11-50%
The concentration can be prepared from ppm to percentage in other uses
Carbon Dioxide standard gas
2~50ppm,51~1000m,1001ppm~16%
The concentration can be prepared from ppm to percentage in other uses
Sulfur Dioxide standard gas
1~1000ppm
The concentration can be prepared from ppm to percentage in other uses
Hydrogen Sulfide standard gas
1~1000ppm
The concentration can be prepared from ppm to percentage in other uses
Nitrogen Monoxide standard gas
2~1000ppm
The concentration can be prepared from ppm to percentage other uses
Nitrogen Dioxide standard gas
2~1000ppm
The concentration can be prepared from ppm to percentage in other uses
Hydrochloric Acid standard gas
5~1000ppm
The concentration can be prepared from ppm to percentage in other uses
Ammonia standard gas
10~1000ppm
The concentration can be prepared from ppm to percentage in other uses
Formaldehyde standard gas
2~50ppm.
Standard gas for analysis of benzene series in air
C6H6(75mgm3),C7H8(150mgm3),C8H10(150mgm3), Para-Xylene(150mg/m3), M-Xylene(150mg/m3)
Ortho-Xylene(150mg/m3), Isopropylbenzene(150mg/m3)
Styrene(150mg/m3)
TVOC standard gas
Standard gas with 23~45 components
Standard Gas for Electric Power Industry
Name
Typical Components
Standard gas for determination of
gases dissolved in transformer oil
H2 100~1000ppm
CO 100~1000ppm
CO2 500~5000ppm
CH4 30~300ppm
C2H6 30~300ppm
C2H4 30~300p0m
C2H2 30~300ppm
Can adjust the concentration of nitrogen or argon to balance the specific concentration
Standard gas of H2S in SF6
5~1000ppm
Standard gas of CO in SF6
5~1000ppm
Standard gas of SO2 in SF6
5~1000ppm
Standard gas for impurity analysis in SF6
H2 5ppm
O2 5ppm
Ar 5ppm
N2 5ppm
CO 5ppm
CO2 5ppm
CF4 10ppm
C2F6 10ppm
C3F8 10ppm
SF6
Standard gas for impurity analysis in SF6
H2S 100ppm
SOF2 50ppm
SO2F2 100ppm
COS 100ppm
CS2 100ppm
He balance
Standard Gas for Medical and Health
Purpose
Typical Components
Gas Balance
Blood Determination
CO2 5~10%
N2
CO2 5%
O2 10~20%
N2
He 9~13%
N2
N2 6~8%
O2
Determination of Cerebral Circulation
CO2 5~10%
Air
Determination of Pulmonary Function
CO 0.2%
He 10%
Air
CO2 100~900ppm
O2 20%
N2
CO 0.2~0.3%
He 10%
O2 20%
N2
CO 0.2%
N2O 15%
O2 20%
N2
CO 0.3%
CH4 0.3%
C2H2 0.3%
O2 21%
N2
CO 0.3%
CH4 0.3%
O2 21%
N2
Anesthesia
N2O 14~30%
Air
N2O 50%
O2,Air
Sterilization
C2H4O 5~25%
Standard gas for Cultivation of Bacteria
H2 5~10%
CO2 5~10%
N2
CO2 4~10%
O2
Standard Gas for Gas Alarm
Typical Components
Gas Balance
CH4 0.5~2.5%
(10%LEL~60%LEL)
Air
C3H8 0.5~1.5%
(10%LEL~60%LEL)
Air
N-C4H10 0.5~1.5%
(10%LEL~60%LEL)
Air
I-C4H10 0.5~1.5%
(10%LEL~60%LEL)
Air
C4H8O 1.8%
Air
H2 0.2~2%
(10%LEL~60%LEL)
Air
O2 21%
N2
CO 50~150ppm
N2 or Air
H2S 1~100ppm
N2 or Air
SO2 1~50ppm
N2 or Air
C2H40 1~100ppm
N2 or Air
Cl2 1~100ppm
N2 or Air
NH3 10~100ppm
N2 or Air
Standard Gas for Earthquake Monitoring
Typical Components
Gas Balance
He 0.1%
Ar 1%
H2 0.1%
CO2 25%
CH4 1%
N2
He 1%
Ar 1.5%
H2 0.5%
CO 2.5%
N2
He 0.1%
Ar 0.1%
H2 0.1%
CO 5%
CO2 15%
CH4 5%
N2
Standard Gas for Vehicle Exhaust Monitoring
Typical Components
Gas Balance
C3H8 500~10000ppm
N2
C3H8 500~10000pp
CO 0.5~8%
N2
C3H8 0.1~8%
CO 3~5%
CO2 9~15%
N2
C3H8 0.1~8%
CO 3~5%
CO2 9~15%
NO 300~3000ppm
N2
NO 0.1~0.5%
N2
