Gas supplying mainfold
-

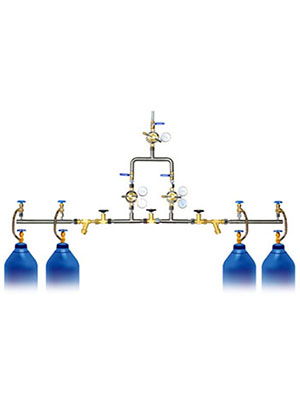

Gas supplying mainfold is a special equipment that collects the gas in several cylinders and supplies gas to each gas point through the pipeline after decompression and pressure stabilization.

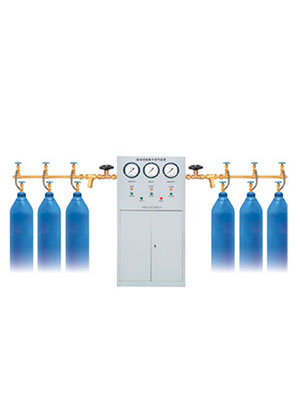

When the automatically gas supplying mainfold work, the gas in one group of cylinder is used at first. When the gas in the cylinder group is exhausted, the gas can be automatically switched to another group and enter the normal gas supply state. At the same time, the sound and light alarm signals are sent out, so that the watchman can replace it in time.In a cycle,continuous steady gas supply operation.
NO.
Medium
Mold
Cylinder group
Woke pressure
Flow form
P1
0.1Mpa
P2
0.1Mpa
1
O2
YQ5S150/1-1
5
150
0.1~1
A
2
YQ5S150/1-1
5
1~15
B
3
YQ5S150/1-1
5
A
4
YQ10S150/1-1
10
C
5
YQ10S150/1-1
10
D
6
YQ10S150/1-1
10
F
7
YQ20S150/1-1
20
C
8
C2H2
EQ5S30/1-1
5
30
0.1~1.5
A
9
EQ10S30/1-1
10
C
10
EQ20S30/1-1
20
C
11
N2
DQ5S150/1-1
5
150
0.1~1
A
12
DQ5S150/1-1
5
1~15
B
13
DQ5S150/1-1
5
A
14
DQ10S150/1-1
10
0.1~1
A
15
DQ10S150/1-1
10
1~15
C
16
DQ20S150/1-1
20
C
17
H2
YQ5S150/1-1
5
150
0.1~1
A
18
QQ5S150/1-1
5
1~15
E
19
QQ5S150/1-1
5
A
20
QQ10S150/1-1
10
0.1~1
A
21
QQ10S150/1-1
10
1~15
C
22
QQ10S150/1-1
10
E
23
QQ20S150/1-1
20
C
24
Air
YS5S150/1-1
5
150
1~15
E
25
YS10S150/1-1
10
60
E
26
Ar
YQ5S150/1-1
5
150
1~15
A
27
YQ10S150/1-1
10
C
28
Mix gas
5
150
0.2~15
29
10
