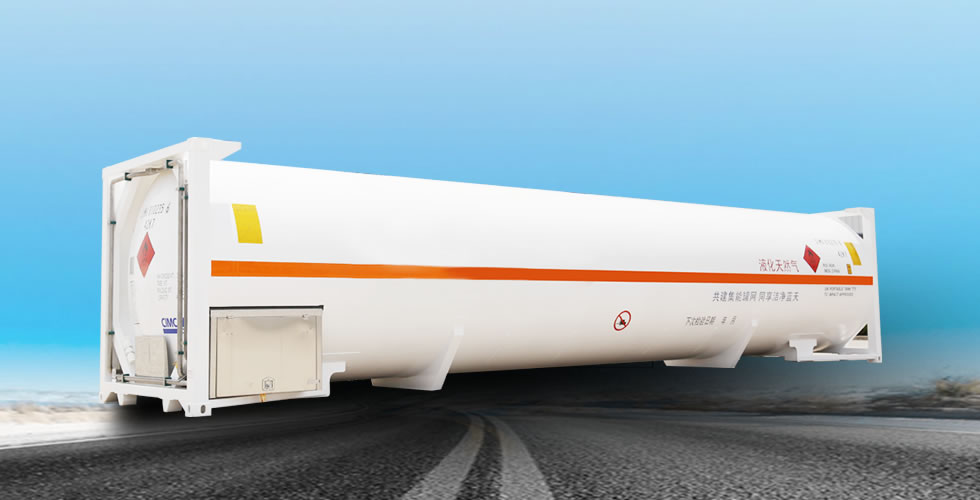

Cryogenic ISO tanks container
-
Cryogenic ISO tanks container
ENStandard products
Product name
CENIS-20-1.8
CENIS-20-2.4
CENIS-40-0.82
volume 21
21
44.5
working pressure 1.8
2.4
0.82
Length
6058
6058
12192
Width
2438
2438
2438
Height
2591
2591
2591
Tare weight 9500
10500
12500
Payload 26500
25500
17980
Rating 36000
36000
30480
Static evaporation rate ≤0.34
≤0.34
≤0.19
Medium
LIN\LOX\LAr\LNG\LC2H4\LN2O
LIN\LOX\LAr\LNG\LC2H4\LN2O\LCO2
LNG
ASME Standard products
Product name
CASIS-20-0.8
CASIS-20-1.6
CASIS-20-2.4
volume 21
19.28
20.5
working pressure 0.8
1.6
2.4
Length
6058
6058
6058
Width
2438
2438
2438
Height
2591
2591
2591
Tare weight
8500
8200
12250
Payload 27500
25800
21750
Rating 36000
34000
34000
Static evaporation rate ≤0.35
≤0.35
Medium LIN\LOX\LAr\LNG\LC2H4
LIN\LOX\LAr\LNG\LC2H4\LN2O
LN2O\LCO2
GBStandard products
Product name
CGBIS-20-0.65
CGBIS-20-1.6
CGBIS-20-2.2
CGBIS-20-2.4
volume 21
21
21
21
working pressure 0.65
1.6
2.2
2.4
Length
6058
6058
6058
6058
Width
2438
2438
2438
2438
height
2591
2591
2591
2591
Tare weight 7220
10100
10850
12000
Payload 26780
25900
22940
22000
Rating 34000
36000
33790
34000
Static evaporation rate ≤0.34
≤0.34
Medium LIN\LOX\LAr\LNG\LC2H4
LIN\LOX\LAr\LNG\LC2H4\LN2O
LCO2
LCO2
Product features:
1. The products cover the requirements of ISO 10ft, 20ft, 30ft, 40ft and other different specifications, pressure grades and volumes.
2、 All tanks are designed by FEA to reduce the dead weight and increase the volume of tanks on the premise of ensuring the safety of tanks;
3、 Advanced composite thermal insulation, mature and reliable vacuum pumping process, unique tank support and internal and external pipeline design ensure that the tank has excellent thermal insulation performance and low daily evaporation rate;
4. The operation pipeline design can meet the needs of different situations, and the tank has perfect active safety and passive safety design;
5. The composite transmitter integrating temperature, pressure, liquid level and GPS can be selected to monitor the liquid state in the tank in real time;
6. A variety of frame forms can be selected, and gooseneck groove can be selected;
7. The operation pipeline can be arranged on the side or end according to the customer's use needs;
8. Multiple standard designs can be selected, such as GB / ASME, en / ASME, etc., with a wider range of products;
9、 Various brands of valves are available;
